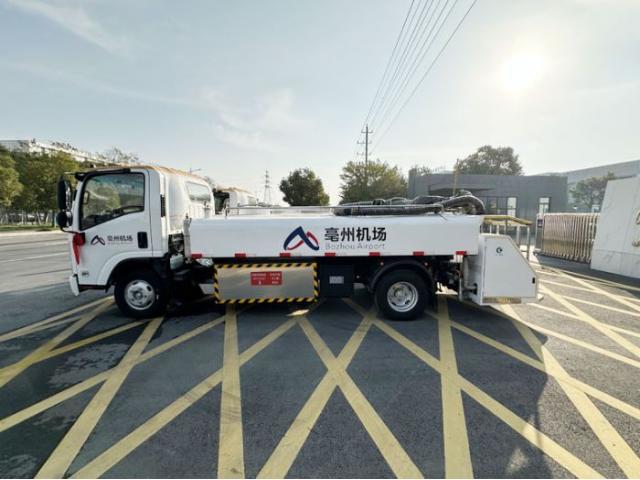

JSTY5060GWSE aircraft sewage truck (electric type) is composed of chassis assembly, lifting workbench assembly, cleaning, sewage box, hydraulic system, electrical system, etc.

Aircraft sewage truck (electric) configuration 7

Clean water tank volume (L) : 1900

Volume of sewage tank (L) : 3600 (with vacuum pump) /3800 (without vacuum pump)

Water supply flow (L/min) : 235

Water supply pressure (MPa) : 0.25~0.35

Quality (kg) : 4750

Overall dimensions (length × width × height) (mm) : 6965×2300×2250

Maximum speed (km/h) : 90

Driving range (km) : 315

Chassis model: QL1070BEVECHA2Y

Circulation tank volume (L) : 200 (with vacuum pump) /0 (without vacuum pump)

Drive motor model: YTD060W23

Drive motor controller model: KTZ50X35S

Motor pump model: JSTY5060GQSE-1002002

Motor pump controller model: JSTY5060GQSE-1002001

Energy storage device assembly model: L173TB2

The total energy of the energy storage device (kWh) : 106.95

Working platform lifting height (mm) : 390 ~ 3100 400~3000 400~3000 400~3000 400~3000 400~3000 440 ~ 3090 440 ~ 3090

Test temperature conditions (℃)

test temperature condition: (° C) Meets the requirements
